This walkthrough shows how to turn a table of results into a clean, checked figure with a coding agent. It uses a small synthetic dataset made up for this page, a short matplotlib script and an explicit list of checks. None of the numbers are real research results, and a plotting skill does not run or write up a research project for you. It makes figures from the results you give it.
Academic Plotting is a hosted SkillGild skill that picks a chart type for results and writes matplotlib or seaborn code, or plans an architecture diagram from a method description. The script and output below were produced by running the plotting code locally. They illustrate the kind of result you should expect to review; they are not a recording of the hosted skill's output. The authenticated run is covered separately.
A good brief gives the agent the data, the claim and the constraints. Without them the agent has to guess, and a plot built on guesses can look right and be wrong.
Plot validation accuracy against training steps for two methods,
Baseline and Example method, from synthetic_accuracy.csv.
Show the mean across 3 seeds with a shaded band for one standard
deviation. Label axes with units. Use direct labels instead of a legend.
Export SVG and PNG. The figure must stay legible when scaled to a
single column. Do not change or add data.
The last sentence matters. Ask the agent to report any data problem it finds, not to repair it.
matplotlib and numpy. The example ran on matplotlib 3.11.2.
With the hosted skill, your own agent does the local work, so these libraries must exist on your machine. See agent skills vs MCP servers for what runs where.
Download synthetic_accuracy.csv. It has 42 rows: two methods, three seeds and seven training-step checkpoints. Values are validation accuracy in percent. They come from invented saturating curves plus seeded random noise, produced by make_dataset.py. Do not cite them as measurements.
method,seed,step,val_accuracy_pct
Baseline,0,0,10.0
Baseline,0,500,18.57
Baseline,0,1000,24.75
Baseline,0,2000,35.22
The full script is plot_results.py. These are the lines that decide how the figure reads:
matplotlib.rcParams["svg.fonttype"] = "none" # keep text as text in the SVG
fig, ax = plt.subplots(figsize=(6.5, 3.6), layout="constrained")
for method, by_step in runs.items():
...
ax.fill_between(xs, mean - std, mean + std, color=c, alpha=0.16, lw=0)
ax.plot(xs, mean, color=c, lw=2.2, marker="o", ms=4.5, mfc="white", mew=1.6)
ax.annotate(f"{method}\n{mean[-1]:.1f}%", (xs[-1], mean[-1]), ...)
ax.set_xlabel("Training steps (thousands)")
ax.set_ylabel("Validation accuracy (%)")
ax.set_ylim(0, 90)
The choices have reasons. The band shows spread across seeds, so a reader can see whether the gap between methods is larger than the noise. Direct labels at the line ends replace a legend that would sit on top of the data. Keeping SVG text as text means the labels stay editable and searchable. The y-axis starts at zero so the gap is not exaggerated.

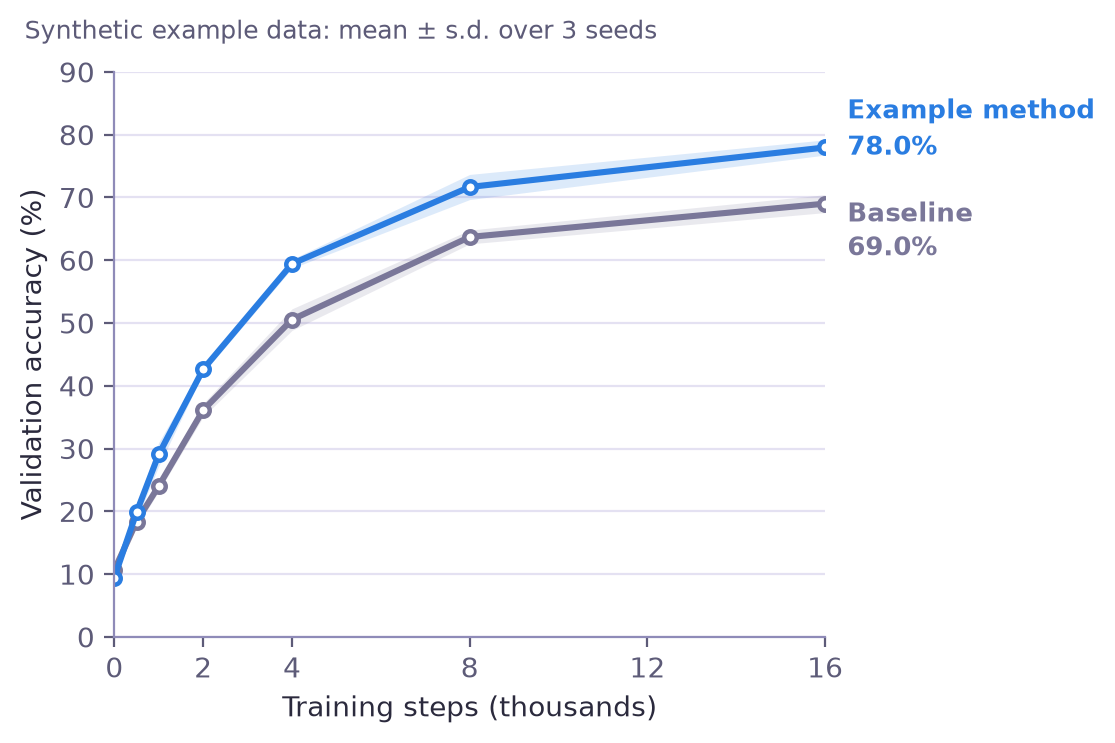

Download accuracy_curve.svg or accuracy_curve.png. The curves are invented, so the figure shows the format, not a finding.
Run the checks yourself on every figure an agent produces. For this one we checked:
| Check | Result for this figure |
|---|---|
| Axis labels and units | x: "Training steps (thousands)"; y: "Validation accuracy (%)" |
| Axis ranges | x from 0 to 16; y from 0 to 90, baseline at zero |
| Values match the data | End labels 78.0% and 69.0% equal the mean of the three seeds at step 16000 in the CSV |
| Uncertainty shown | Shaded band is one standard deviation across 3 seeds, stated in the figure heading |
| Synthetic data flagged | The figure heading says "Synthetic example data" |
| Export size | SVG about 5.6 by 3.7 inches; PNG 1115 by 743 pixels at 200 dpi |
| Text stays text | The SVG keeps labels as text elements, not outlines |
For your own work add the checks that depend on the venue: the column width, font size at final size, colour-blind safe colours and whether the caption states the number of runs. A checklist like this is a review step, not proof of a correct result.
The steps below are the supported Claude Code route. The figure above is an illustrative local output. A separate authenticated production run by Codex is documented in the recorded session below; it does not establish that these Claude Code steps were recorded end to end.
skillgild install academic-plotting --agent claude-code
Read the Academic Plotting listing for its inputs and current allowance. Never ask the agent to invent data to complete a brief.
A plotting skill can choose a chart type and write the code. It cannot tell whether your experiment was sound, whether a difference is statistically meaningful or whether a journal accepts the style. Those stay your decisions. For more workflows, see the free skills selection guide and the Claude skills overview.
