Priya Nair Every few years someone reimplements a neural network in SQL. The latest is a Fashion-MNIST trainer built on xarray-sql: weights and biases live as tables, forward and backward passes are queries, and training is a loop of set operations. It is not a production stack. It is one of the clearer maps you will find from textbook backprop to the relational model.
The interesting claim is not "SQL can do deep learning." It is that once you force every matmul, activation, and gradient step into joins and aggregations, the algebra stops being abstract. That is useful for anyone who has only ever called loss.backward()
and wants to see what the framework is hiding.

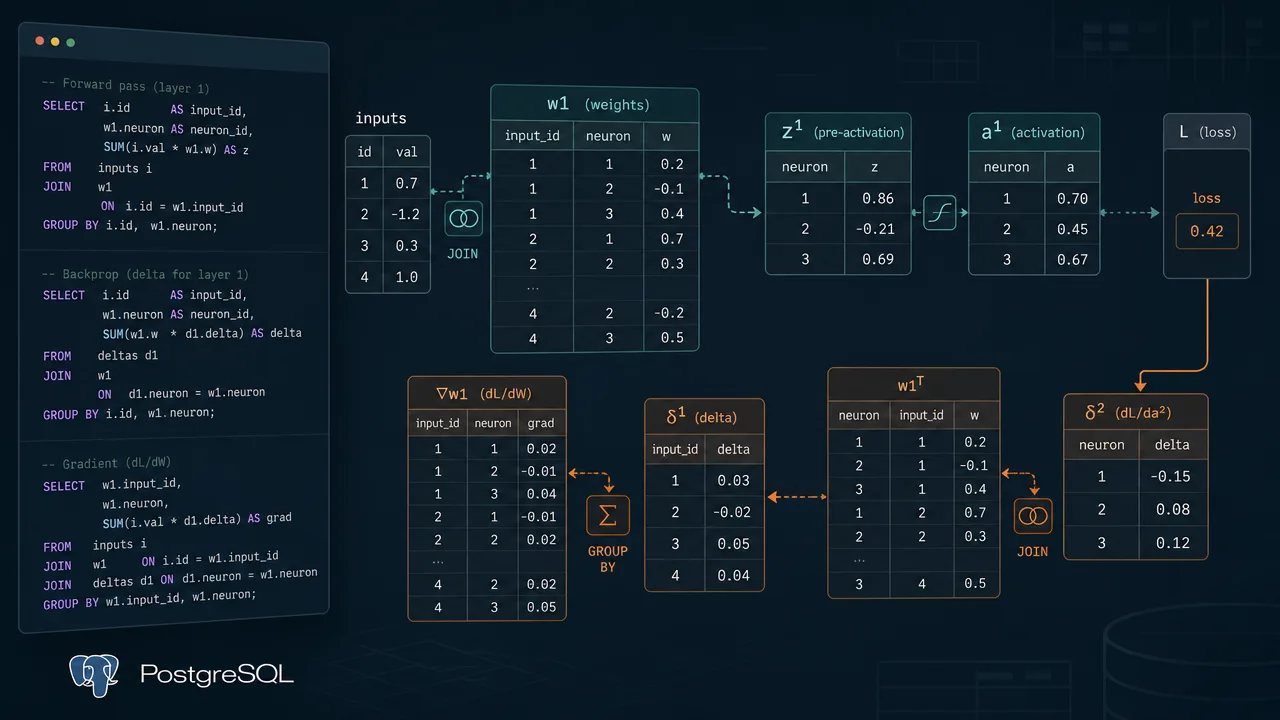

Layers as tables, matmul as a join #
The network is a three-layer MLP with widths (784, 196, 32, 10)
: flattened 28×28 pixels, a 196-unit hidden layer, a 32-unit tanh layer, then a 10-way softmax. In the demo each weight matrix is a 2D array with dimensions like (inp_i, out_i)
, and each bias is a 1D vector on out_i
. Those arrays become named tables (layer0
, bias0
, …).
Matrix multiplication then looks like the classic relational rewrite. You join activations to weights on the contracting dimension, multiply, and GROUP BY
the free dimensions with SUM
. Older MySQL demos did the same thing with explicit CROSS JOIN … ON column_index = row_index
and a SUM(weight * cell_value)
. The xarray-sql version is the same idea with better coordinate handling and lazy chunked inputs, but the relational skeleton has not changed since people were hand-rolling this in SQL Server for weather forecasts and bike-buyer scores.
That continuity is the point. The math was always join-and-aggregate. Frameworks paper over it with BLAS kernels; SQL makes the paper thin.
Backprop without a tape #
Training uses a fixed learning rate of 0.5
, 60
steps, and a subsample of 700
examples (70%
train). Gradients are not free. You re-express the usual chain rule as more joins: error at the output, weighted contributions back through each layer, outer products for weight updates, then an UPDATE
(or equivalent rewrite) of the parameter tables.
Historically this is where pure-SQL nets got ugly. A 2016 MySQL prototype split training into product, nonlinearity, loss, gradient, and update steps, each as a separate query, on a toy dataset with three parameters. A 2009 SQL Server design modeled the whole graph as an ERD and iterated until error hit ~5%. Neither was flexible or fast. The modern demo is cleaner because the array-to-table mapping is systematic and the engine can stream chunked zarr from object storage, but the algorithmic shape is the same: no autograd tape, just explicit reverse-mode algebra written by hand.
If you have ever debugged a vanishing gradient by printing intermediate tensors, this is that discipline with worse ergonomics and better forced clarity.
Zero pixels are free rows you can drop #
Fashion-MNIST images are roughly half zeros (dark background). A zero times a weight is zero, so those input rows contribute nothing to the first layer. The demo sets SKIP_ZERO_PIXELS = True
and filters them out of the layer-0 contraction. On real Fashion-MNIST that cut step time from about 2.56s
to 1.45s
(~1.8×). On dense inputs it is a no-op. In a dense framework you might rely on sparse kernels or accept the multiply. In SQL the optimization is just a predicate before the join. The join shrinks exactly; the result is identical. That is a nice illustration of when relational operators win: sparsity that is natural in the data model becomes a free filter, not a special-case kernel.
Chunk size (250
) and the lazy open of the zarr store matter for the same reason. Nothing materializes the full training set in memory up front; the SQL engine samples and streams. That is closer to how analytical warehouses already work than to a single-GPU training loop.
What this is actually good for #
Nobody should train production models this way. Sixty steps on 700 samples is a smoke test, not a run. You will not beat PyTorch, JAX, or even a decent DuckDB UDF calling a small ONNX runtime. Latency, optimizer variety, mixed precision, and distributed data parallel are not the point.
The practical uses are narrower and real:
Pedagogy. If you teach or interview people on backprop, forcing them to write the weight update as a join is ruthless and effective. They cannot hide behindnn.Linear
.Engine stress tests. Dense matmul and reduction patterns are a hard, regular workload for SQL engines that claim strong analytical performance. The skip-zero trick is a good check that predicate pushdown and join reordering still work under load.In-database inference adjacent work. Shippingtrainedweights into a warehouse and scoring with SQL (or a UDF) is common. Understanding the forward pass as joins makes those scoring queries less mysterious. Training in pure SQL is the extreme version of the same idea.Historical continuity. Microsoft’s Analysis Services Neural Network, DMX, and various "ANN in T-SQL" articles solved a different problem (black-box mining models next to the data). The pure-query approach is the opposite: full transparency, no mining server, terrible throughput. Knowing both ends of that spectrum helps when someone asks "can we keep the model in the database?"
If you want to try it, the path is: open the Fashion-MNIST zarr (or the synthetic offline fallback), build the weight/bias dataset with the table-name map, run the training loop with SKIP_ZERO_PIXELS
on, and inspect intermediate tables after a few steps. Watch which joins dominate. Compare a step with and without the zero filter. That is the whole exercise.
Not a new backend, a better whiteboard #
SQL neural nets keep coming back because the mapping is honest. A weight matrix is a relation. A matmul is a join plus a sum. Backprop is more of the same with error signals. The xarray-sql Fashion-MNIST trainer is a polished instance of that mapping, with modern lazy I/O and a sparsity trick that actually measures well on real images.
Treat it as a whiteboard you can execute, not as a competitor to PyTorch or as a reason to move training into your warehouse. The developers who get value from it are the ones who need to see the gradients as data, or who need to know exactly how far set-based engines can be pushed before you should stop.
For everyone else, keep training in a framework and score where the data lives. The SQL version has already done its job if it made the algebra legible.
