MCP server for EasyEDA Pro: PCB inspection, BOM, exports, and hardware review.
The current version, v1.0.0, was published to the official MCP registry on 2026-08-27. It is distributed as easyeda-mcp-pro on npm, filed under Other by this index, and declares 67 environment variables. Removals and unreachable sources are measured across every server this index tracks, contract drift across the servers that answer in consecutive snapshots; the index's current counts put this record in context.
Using io.github.oaslananka/easyeda-mcp-pro in Claude, Cursor, Gemini CLI, Cline, or Zed? #
MCP tool contracts can change remotely with no version bump. The mcpindex gate pins each contract and HOLDs the call when it drifts-before your agent acts. Zero credentials. This is not the package install for this server itself (use Install this server for that).
Rewrites your MCP host config so each server launches behind the gate. Inspect first: curl -fsSL https://mcpindex.ai/install.sh | less
uv tool install mcpindex-gate && mcpindex-config-wire

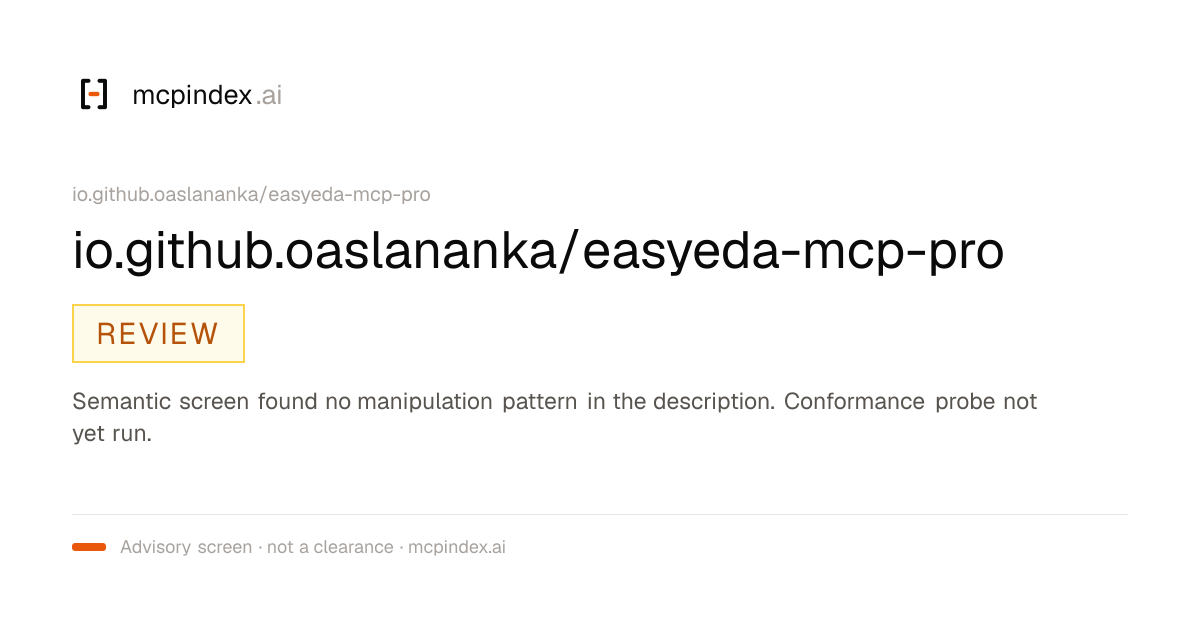

Semantic screen found no manipulation pattern in the description. Conformance probe not yet run.
mcpindex.integrity.description
passINFOevidence“No malicious instructions found”via static_description
-
- Semantic screen only - the deterministic conformance probe has not run on this server
-
- Confidence is reported but not yet calibrated (v1)
-
- Screen reads the tool description, not the live behavior
-
- advisory
-
- registry description only no input schema
-
- screen model 8b
-
- Still current: the description we screened is unchanged, re-checked against the registry
-
- The registry listing (version, packages, links) changed after this screen ran - the description we assessed did not
Semantic screen: an LLM judge reads the tool description for hidden instructions (status PARTIAL). A pass means the description is not lying, not that the tool is safe: a high-capability tool with an honest description still warrants caution. The deterministic conformance probe has not been run on this server yet, so the screen here is semantic-only. Posture: advisory. Confidences are reported but not yet calibrated (calibrated=false at v1). Full verdict history is not shown on this page.
Own this server? Screen its description →
That verdict was true at screening time (snapshot 2026-08-27). #
Contracts can change after screening, with no version bump. The gate pins io.github.oaslananka/easyeda-mcp-pro’s tool contracts on first sight and holds any silent change before your agent acts - the check that keeps being true on Tuesday.
See your first HOLD in 2 minutes →
Related: how to trust an MCP server · screen before install · silent contract drift
People vet a server before wiring it in. One line on your project site or docs answers that with an independent record: screening verdict, registry provenance, contract drift history. It stays current as new screens and drift events land.
[Independent trust record for io.github.oaslananka/easyeda-mcp-pro](https://mcpindex.ai/server/io-github-oaslananka-easyeda-mcp-pro) - screening verdict, registry provenance, and contract drift monitoring.
<a href="https://mcpindex.ai/server/io-github-oaslananka-easyeda-mcp-pro">Independent trust record for io.github.oaslananka/easyeda-mcp-pro</a> - screening verdict, registry provenance, and contract drift monitoring.
A live verdict badge for your README or listing. It reflects the current screen, links back here, and updates when the verdict does.
[](https://mcpindex.ai/server/io-github-oaslananka-easyeda-mcp-pro)
<a href="https://mcpindex.ai/server/io-github-oaslananka-easyeda-mcp-pro"><img src="https://mcpindex.ai/api/v1/badge/io-github-oaslananka-easyeda-mcp-pro" alt="mcpindex verdict" height="20" /></a>
NODE_ENV
Environment mode
LOG_LEVEL
Pino log level
TOOL_PROFILE
Active tool profile (core, pro, full, dev, experimental)
TOOL_SCOPES
Optional comma- or space-separated capability scope allowlist; empty enables all scopes allowed by the active tool profile.
MCP_PROTOCOL_VERSION
MCP protocol version string
MCP_BRIDGE_BACKEND
Bridge backend: local_bridge or experimental remote_relay
MCP_REMOTE_SESSION_ID
Optional fixed Remote Relay session id for the remote_relay backend
TRANSPORT
Server transport mode (stdio or http)
HTTP_HOST
HTTP bind address
HTTP_PORT
HTTP port
HTTP_AUTH_DISABLED
Disable HTTP transport authentication
HTTP_RATE_LIMIT_MAX
Max requests per minute per IP
CORS_ORIGIN
Allowed CORS origin for HTTP transport
ALLOWED_ORIGINS
Comma-separated list of allowed origins for HTTP transport (use * for wildcard)
MCP_TASKS_ENABLED
Reserved; currently non-functional: parsed for compatibility, but the server does not advertise or execute MCP Tasks.
MCP_APPS_ENABLED
Reserved; currently non-functional: parsed for compatibility, but no MCP Apps UI or resource runtime is registered.
MCP_V2_EXPERIMENTAL
Reserved; currently non-functional: does not change MCP protocol negotiation.
MCP_RAW_EXEC_EXPERIMENTAL
Experimental second gate for raw EasyEDA runtime execution; requires BRIDGE_RAW_EXEC_ENABLED.
BRIDGE_HOST
Bridge WebSocket host for EasyEDA Pro connection
BRIDGE_PORT
Bridge primary port
BRIDGE_PORT_SCAN
Port scan specification (comma-separated ports or ranges)
BRIDGE_TIMEOUT_MS
Bridge call timeout in ms
BRIDGE_HEARTBEAT_MS
Bridge heartbeat interval in ms
BRIDGE_WAIT_FOR_EDA_MS
How long to wait for EasyEDA Pro to become available on startup (ms)
BRIDGE_MAX_PAYLOAD_SIZE
Max bridge payload size in bytes
BRIDGE_TOKEN
Session token for extension auth
EASYEDA_DEV_BRIDGE
Enable EasyEDA dev bridge mode
BRIDGE_RAW_EXEC_ENABLED
Experimental first gate for raw EasyEDA runtime execution; requires MCP_RAW_EXEC_EXPERIMENTAL.
DATA_DIR
Base directory for writable local state; defaults beneath the operating-system user home directory.
SQLITE_PATH
SQLite database path; derived from DATA_DIR unless explicitly configured.
ARTIFACT_DIR
Artifact export directory; derived from DATA_DIR unless explicitly configured.
CACHE_DIR
Cache directory; derived from DATA_DIR unless explicitly configured.
AI_PROVIDER
Reserved; currently non-functional: no in-process AI provider client is invoked.
AI_MODEL
Reserved; currently non-functional: no model is selected or invoked.
AI_API_KEY
Reserved; currently non-functional: do not supply credentials because no provider client consumes them.
AI_MAX_TOKENS
Reserved; currently non-functional: retained only for future provider compatibility.
AI_TIMEOUT_MS
Reserved; currently non-functional: retained only for future provider compatibility.
AI_ALLOW_DESIGN_MUTATIONS
Reserved; currently non-functional: cannot enable AI-originated design mutation.
JLCPCB_MODE
JLCPCB API mode (disabled, mock, approved_api)
JLCPCB_CLIENT_ID
JLCPCB API client identifier.
JLCPCB_CLIENT_SECRET
JLCPCB API client secret
JLCPCB_API_BASE_URL
JLCPCB API base URL
JLCPCB_ENABLE_ORDERING
Enable JLCPCB ordering
JLCSEARCH_ENABLED
Enable LCSC component search
JLCSEARCH_BASE_URL
LCSC search API base URL
LCSC_API_KEY
LCSC API key
KEYLESS_SOURCING_ENABLED
Allow supported public keyless component-sourcing fallbacks when vendor credentials are unavailable.
SOURCING_CACHE_TTL_SECONDS
Component-sourcing cache lifetime in seconds (0 disables cache reuse).
VENDOR_MIN_REQUEST_INTERVAL_MS
Minimum delay in milliseconds between outbound requests to the same sourcing vendor.
MOUSER_ENABLED
Enable Mouser integration
MOUSER_API_KEY
Mouser API key
MOUSER_API_BASE_URL
Mouser API base URL
DIGIKEY_ENABLED
Enable DigiKey integration
DIGIKEY_CLIENT_ID
DigiKey OAuth2 client identifier.
DIGIKEY_CLIENT_SECRET
DigiKey OAuth2 client secret
DIGIKEY_SANDBOX
Use DigiKey sandbox environment
DIGIKEY_LOCALE
DigiKey locale
DIGIKEY_CURRENCY
DigiKey pricing currency
OAUTH_ENABLED
Enable OAuth for HTTP mode
OAUTH_ISSUER
Expected OAuth token issuer
OAUTH_AUDIENCE
Expected OAuth token audience
OAUTH_JWKS_URI
JWKS endpoint for token signature validation
OAUTH_REQUIRED_SCOPES
Required OAuth token scope
OTEL_ENABLED
Reserved; currently non-functional: no OTLP exporter is started.
OTEL_SERVICE_NAME
Reserved; currently non-functional: retained for a future OTLP exporter.
OTEL_EXPORTER_OTLP_ENDPOINT
Reserved; currently non-functional: retained for a future OTLP exporter.
TRACE_SAMPLE_RATE
Reserved; currently non-functional: no OTLP traces are emitted.
